Stealth Dimmer SP Installation

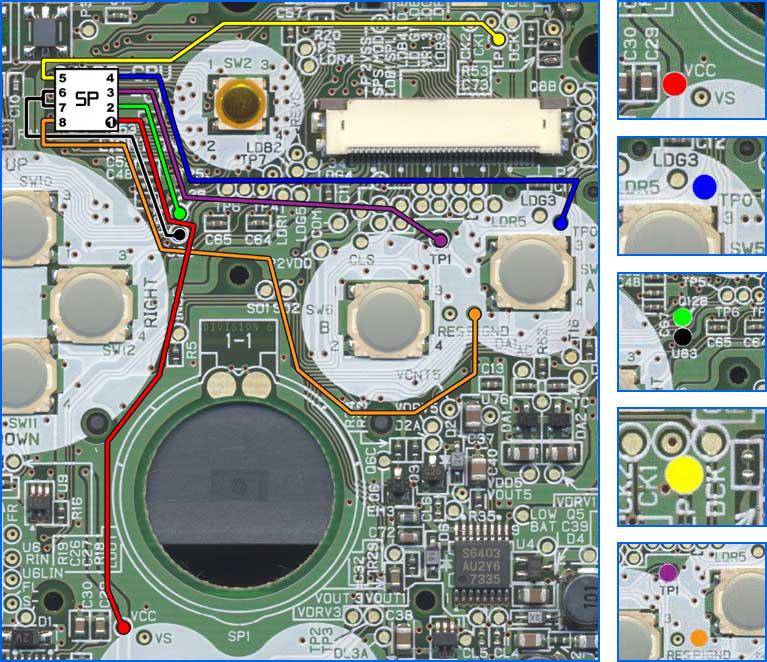

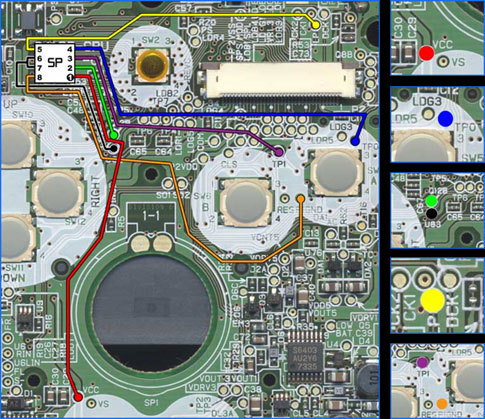

Stealth Dimmer SP Solder Points

Chip Signals:
Pin 1- +3.3 volts (Chip Power)
Pin 2- Light Button Input
Pin 3- "Darker" Input (B)
Pin 4- "Brighter" Input (A)
Pin 5- Sync Input
Pin 6- Frontlight Output
Pin 7- Frontlight Output
Pin 8- Ground 		GBA-SP Button Signals:
TP0- A
TP1- B
TP2- Select
TP3- Start
TP4- Right
 TP5- Left
TP6- Up
TP7- Down
TP8- R
TP9- L


Installation Tips:

  • Do not take the GBA-SP screen apart; it is only necessary to disassemble the base
  • Locate Pin 1 on the chip by looking for a dimple in one corner
  • Stick the chip to the GBA board using double-sided tape first so it won't move around while soldering
  • Cut off excess wire length
  • Use low-wattage, fine-tipped soldering iron
  • Use flux or rosin-core solder
  • Don't hold the iron on the chip pins too long as you could damage the chip
  • Don't hold the iron on the GBA board too long as you may lift the solder pad
  • Make sure wires don't cross white areas, screw holes, or tall components
  • If alternate button assignments are desired, see button signal list for available connection points
